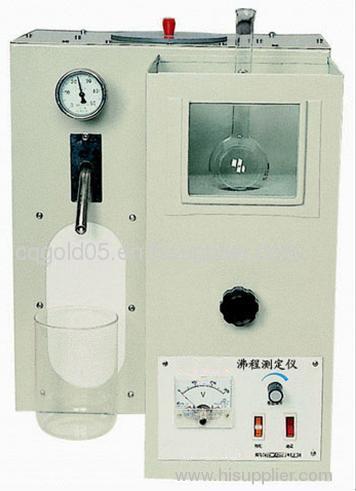

The instrument is designed and made as per the National Standard GB/T7534-2004 "Test Methods for Distillation Characteristics of Volatile Organic liquids for Industrial Use". It is suitable to determine distillation characteristics of volatile organic liquids for industrial use, and organic solvent for materials. If equipped with a suitable flask, it can also be used to determine distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate fuels and similar petroleum products.

Technical characteristics and performance

1. Adopt quartz glass tubes to enclose heating wire, there is no flame, so it is safe and with long useful life.

2. You can rotate knob to adjust the position of distillation flask.

3. The heating power of electric furnace can be continuously adjusted using the knob on the control panel.

Technical parameter

1. Power supply: AC 220V±10%, 50Hz;

2. Heating power of electric furnace: 1000 W;

3. Movable plate for electric furnace: made of SiC plate and their hole diameters are φ38 and φ50 respectively.

4. Distillation flask: Made of harden glass; Outer diameter of ball of flask is φ65;

5. Refrigeration tube: made of copper tube of φ14; its outlet is in circular form. Its length is 560 mm;

6. Graduated flask: 100 ml; scale division is 1 ml;
